Категория
Diodes - Bridge Rectifiers
Производитель
Taiwan Semiconductor
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

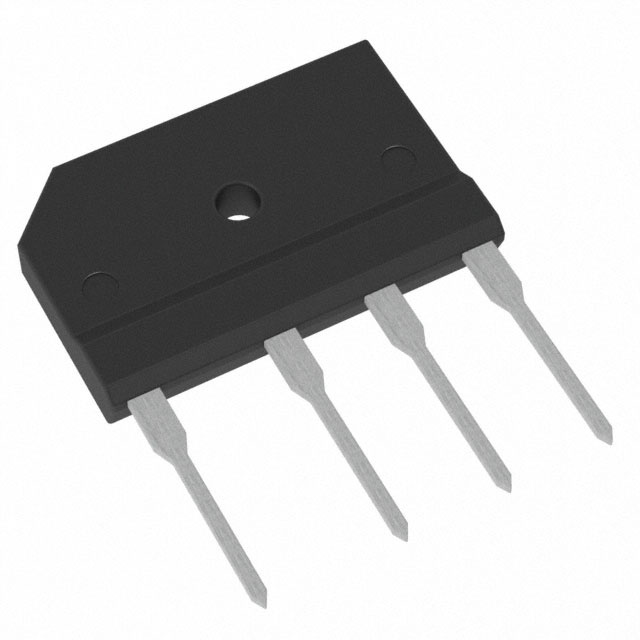

| Part Number: | TS40P06G D2G |
| Description: | BRIDGE RECT 1P 800V 40A TS-6P |
| Lead Free Status / RoHS Status: | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 20A |
| Technology | Standard |
| Diode Type | Single Phase |
| Packaging | Tube |
| Supplier Device Package | TS-6P |
| Current - Average Rectified (Io) | 40A |
| Detailed Description | Bridge Rectifier Single Phase Standard 800V Through Hole TS-6P |
| Series | - |
| Package / Case | 4-SIP, TS-6P |
| Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 6 Weeks |
| Voltage - Peak Reverse (Max) | 800V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Reverse Leakage @ Vr | 10µA @ 800V |
| Other Names | TS40P06G D2G-ND TS40P06GD2G |
| Meta Part Number | TS40P06GD2G-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -55°C ~ 150°C (TJ) |
Таблицы данных: Work in prgress, stay tuned!
