Категория
Diodes - Bridge Rectifiers
Производитель
Taiwan Semiconductor
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

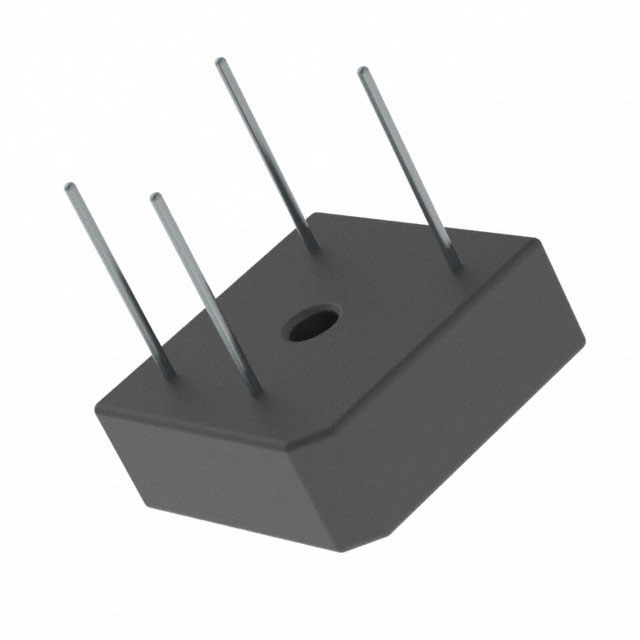

| Part Number: | GBPC3508W T0G |
| Description: | BRIDGE RECT 1P 800V 35A GBPC-W |
| Lead Free Status / RoHS Status: | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Manufacturer Standard Lead Time | 12 Weeks |
| Packaging | Tray |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Peak Reverse (Max) | 800V |
| Series | - |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 17.5A |
| Meta Part Number | GBPC3508WT0G-ND |
| Current - Average Rectified (Io) | 35A |
| Package / Case | 4-Square, GBPC-W |
| Other Names | GBPC3508W T0G-ND GBPC3508WT0G |
| Diode Type | Single Phase |
| Supplier Device Package | GBPC-W |
| Mounting Type | Through Hole |
| Detailed Description | Bridge Rectifier Single Phase Standard 800V Through Hole GBPC-W |
| Current - Reverse Leakage @ Vr | 5µA @ 800V |
| Technology | Standard |
Таблицы данных: Work in prgress, stay tuned!
