Категория
Transistors - IGBTs - Single
Производитель
Renesas Electronics Corporation
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

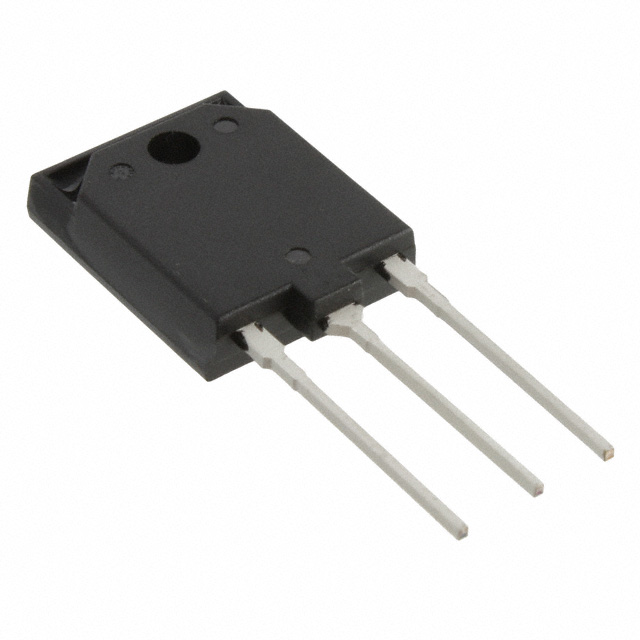

| Part Number: | RJH60D7DPM-00#T1 |
| Description: | IGBT 600V 90A 55W TO3PFM |
| Lead Free Status / RoHS Status: | |
| Power - Max | 55W |
| Series | - |
| Base Part Number | RJH60D |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Meta Part Number | RJH60D7DPM-00#T1-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Test Condition | 300V, 50A, 5 Ohm, 15V |
| Operating Temperature | 150°C (TJ) |
| Current - Collector (Ic) (Max) | 90A |
| IGBT Type | Trench |
| Package / Case | TO-3PFM, SC-93-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard |
| Packaging | Tube |
| Switching Energy | 1.1mJ (on), 600µJ (off) |
| Reverse Recovery Time (trr) | 100ns |
| Supplier Device Package | TO-3PFM |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 50A |
| Gate Charge | 130nC |
| Mounting Type | Through Hole |
| Td (on/off) @ 25°C | 60ns/190ns |
| Detailed Description | IGBT Trench 600V 90A 55W Through Hole TO-3PFM |
