Категория
Transistors - IGBTs - Single
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

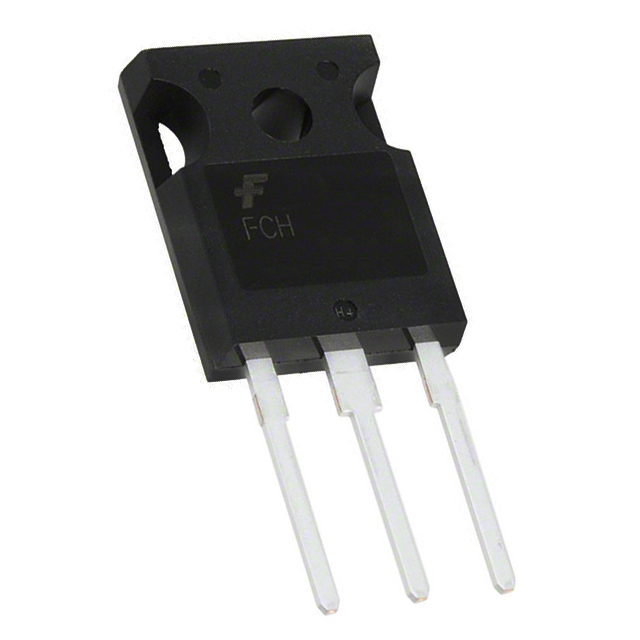

| Part Number: | FGY40T120SMD |
| Description: | IGBT 1200V 80A TO-247 |
| Lead Free Status / RoHS Status: | |
| Current - Collector (Ic) (Max) | 80A |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Reverse Recovery Time (trr) | 65ns |
| IGBT Type | Trench Field Stop |
| Test Condition | 600V, 40A, 10 Ohm, 15V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Detailed Description | IGBT Trench Field Stop 1200V 80A 882W Through Hole TO-247 |
| Series | - |
| Current - Collector Pulsed (Icm) | 160A |
| Package / Case | TO-247-3 |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Supplier Device Package | TO-247 |
| Input Type | Standard |
| Gate Charge | 370nC |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Switching Energy | 2.7mJ (on), 1.1mJ (off) |
| Td (on/off) @ 25°C | 40ns/475ns |
| Meta Part Number | FGY40T120SMD-ND |
| Power - Max | 882W |
Таблицы данных: Work in prgress, stay tuned!
