Категория
Transistors - Bipolar (BJT) - Single, Pre-Biased
Производитель
LAPIS Technology
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | DTD723YMT2L |
| Description: | TRANS PREBIAS NPN 150MW VMT3 |
| Lead Free Status / RoHS Status: | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 2V |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 2.5mA, 50mA |

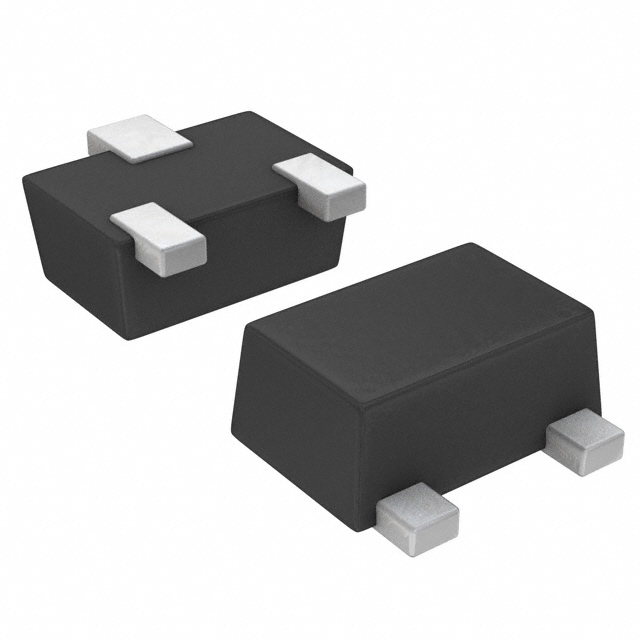

| Package / Case | SOT-723 |
| Resistor - Base (R1) | 2.2 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 30V 200mA 260MHz 150mW Surface Mount VMT3 |
| Voltage - Collector Emitter Breakdown (Max) | 30V |
| Packaging | Digi-Reel® |
| Transistor Type | NPN - Pre-Biased |
| Mounting Type | Surface Mount |
| Current - Collector Cutoff (Max) | 500nA |
| Supplier Device Package | VMT3 |
| Power - Max | 150mW |
| Meta Part Number | DTD723YMT2LDKR-ND |
| Other Names | DTD723YMT2LDKR |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Collector (Ic) (Max) | 200mA |
| Base Part Number | DTD723 |
| Frequency - Transition | 260MHz |
Таблицы данных: Work in prgress, stay tuned!
