Категория
Thyristors - TRIACs
Производитель
STMicroelectronics
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

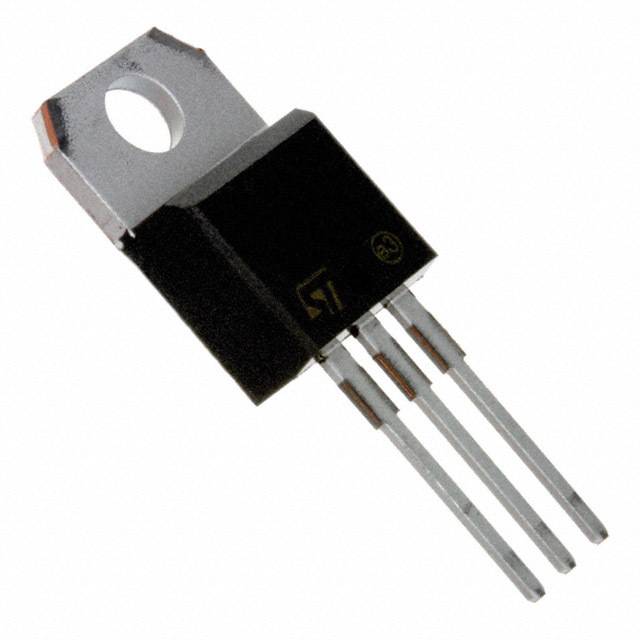

| Part Number: | T810T-6I |
| Description: | TRIAC SENS GATE 600V 8A TO220AB |
| Lead Free Status / RoHS Status: | |
| Current - On State (It (RMS)) (Max) | 8A |
| Meta Part Number | 497-10087-5-ND |
| Packaging | Tube |
| Manufacturer Standard Lead Time | 23 Weeks |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Series | - |
| Voltage - Off State | 600V |
| Supplier Device Package | TO-220AB Insulated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Part Number | T8**T |
| Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Gate Trigger (Igt) (Max) | 10mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 60A, 63A |
| Current - Hold (Ih) (Max) | 15mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
| Package / Case | TO-220-3 |
| Triac Type | Logic - Sensitive Gate |
| Other Names | 497-10087-5 T810T6I |
| Detailed Description | TRIAC Logic - Sensitive Gate 600V 8A Through Hole TO-220AB Insulated |
| Configuration | Single |
Таблицы данных: Work in prgress, stay tuned!
