Категория
Thyristors - TRIACs
Производитель
Hamlin / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

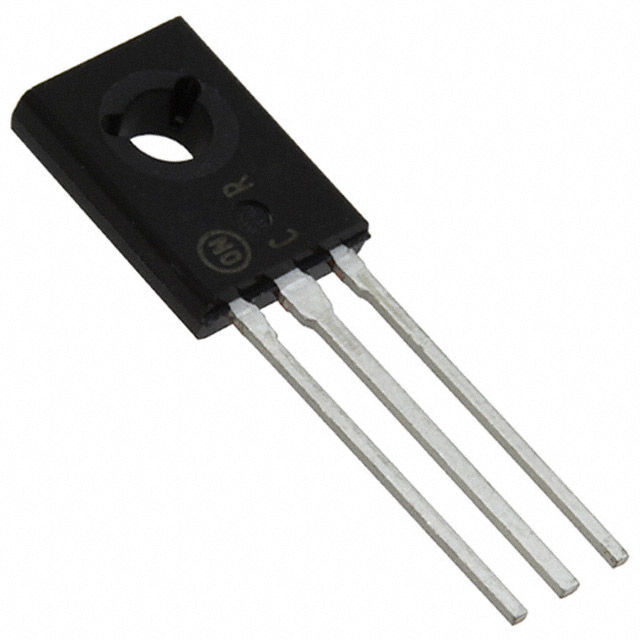

| Part Number: | 2N6073BG |
| Description: | TRIAC SENS GATE 400V 4A TO225AA |
| Lead Free Status / RoHS Status: | |
| Voltage - Off State | 400V |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5V |
| Triac Type | Logic - Sensitive Gate |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 30A @ 60Hz |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | 2N6073BGOS-ND |
| Packaging | Bulk |
| Manufacturer Standard Lead Time | 17 Weeks |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Supplier Device Package | TO-225AA |
| Current - Gate Trigger (Igt) (Max) | 3mA |
| Series | - |
| Current - Hold (Ih) (Max) | 15mA |
| Current - On State (It (RMS)) (Max) | 4A |
| Mounting Type | Through Hole |
| Base Part Number | 2N6073B |
| Other Names | 2N6073BGOS |
| Package / Case | TO-225AA, TO-126-3 |
| Configuration | Single |
| Detailed Description | TRIAC Logic - Sensitive Gate 400V 4A Through Hole TO-225AA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Таблицы данных: Work in prgress, stay tuned!
