Категория
Transistors - IGBTs - Single
Производитель
STMicroelectronics
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

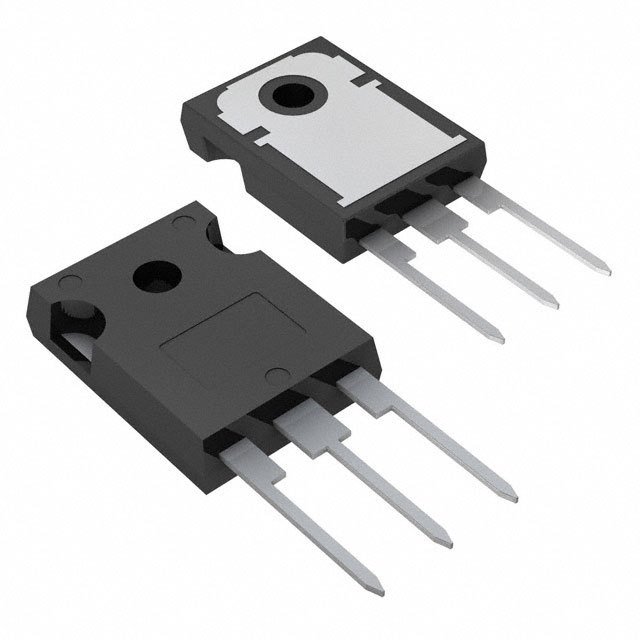

| Part Number: | STGW30H65FB |
| Description: | IGBT 650V 30A 260W TO-247 |
| Lead Free Status / RoHS Status: | |
| Input Type | Standard |
| Package / Case | TO-247-3 |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Td (on/off) @ 25°C | 37ns/146ns |
| Current - Collector (Ic) (Max) | 30A |
| Meta Part Number | 497-14467-5-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Detailed Description | IGBT Trench Field Stop 650V 30A 260W Through Hole TO-247 |
| Switching Energy | 151µJ (on), 293µJ (off) |
| Other Names | 497-14467-5 |
| Current - Collector Pulsed (Icm) | 120A |
| Series | - |
| IGBT Type | Trench Field Stop |
| Supplier Device Package | TO-247 |
| Power - Max | 260W |
| Packaging | Tube |
| Gate Charge | 149nC |
| Test Condition | 400V, 30A, 10 Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
Таблицы данных: Work in prgress, stay tuned!
