Категория
Transistors - FETs, MOSFETs - Arrays
Производитель
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | SI7922DN-T1-GE3 |
| Description: | MOSFET 2N-CH 100V 1.8A 1212-8 |
| Lead Free Status / RoHS Status: | |
| Other Names | SI7922DN-T1-GE3DKR |

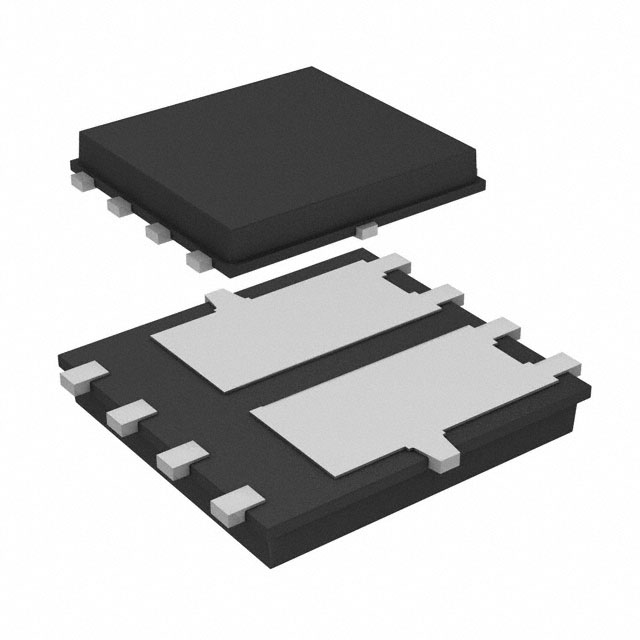

| Package / Case | PowerPAK® 1212-8 Dual |
| Rds On (Max) @ Id, Vgs | 195 mOhm @ 2.5A, 10V |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 100V 1.8A 1.3W Surface Mount PowerPAK® 1212-8 Dual |
| Packaging | Digi-Reel® |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 10V |
| Meta Part Number | SI7922DN-T1-GE3DKR-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Drain to Source Voltage (Vdss) | 100V |
| Supplier Device Package | PowerPAK® 1212-8 Dual |
| FET Feature | Logic Level Gate |
| Series | TrenchFET® |
| Current - Continuous Drain (Id) @ 25°C | 1.8A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Type | 2 N-Channel (Dual) |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Base Part Number | SI7922 |
| Power - Max | 1.3W |
Таблицы данных: Work in prgress, stay tuned!
