Категория
Transistors - FETs, MOSFETs - Arrays
Производитель
LAPIS Technology
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

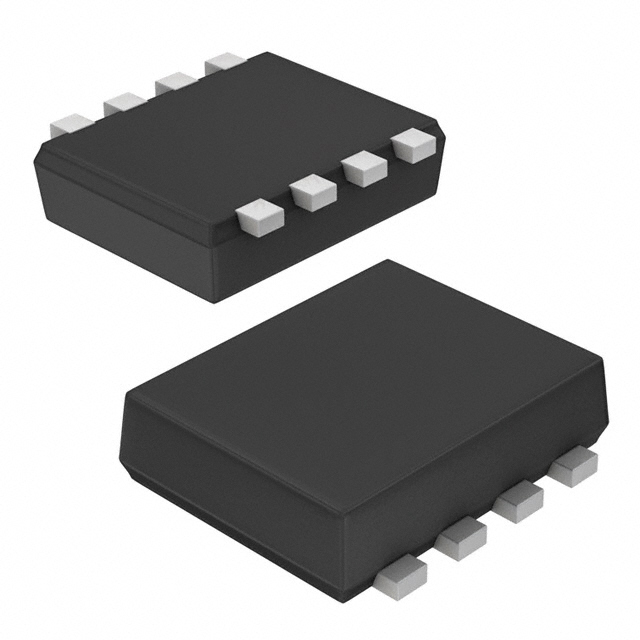

| Part Number: | QH8MA3TCR |
| Description: | MOSFET N/P-CH 30V TSMT8 |
| Lead Free Status / RoHS Status: | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| FET Type | N and P-Channel |
| Power - Max | 1.5W |
| Other Names | QH8MA3TCRTR |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Input Capacitance (Ciss) (Max) @ Vds | 300pF @ 15V |
| Package / Case | 8-SMD, Flat Lead |
| Rds On (Max) @ Id, Vgs | 29 mOhm @ 7A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 7.2nC @ 10V |
| FET Feature | Standard |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | 150°C (TJ) |
| Detailed Description | Mosfet Array N and P-Channel 30V 7A, 5.5A 1.5W Surface Mount TSMT8 |
| Drain to Source Voltage (Vdss) | 30V |
| Series | - |
| Current - Continuous Drain (Id) @ 25°C | 7A, 5.5A |
| Supplier Device Package | TSMT8 |
| Meta Part Number | QH8MA3TCRTR-ND |
Таблицы данных: Work in prgress, stay tuned!
