Категория
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Производитель
Nexperia
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

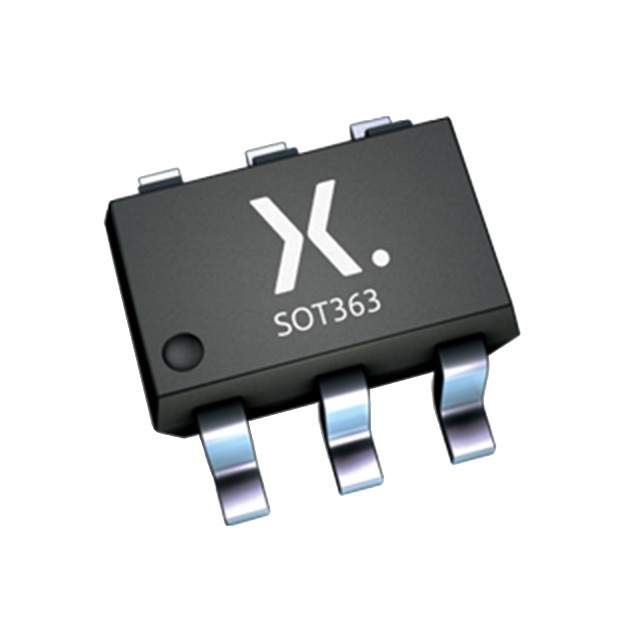

| Part Number: | PUMD16,115 |
| Description: | TRANS PREBIAS NPN/PNP 6TSSOP |
| Lead Free Status / RoHS Status: | |
| Series | - |
| Frequency - Transition | - |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Current - Collector (Ic) (Max) | 100mA |
| Meta Part Number | 1727-3930-2-ND |
| Power - Max | 300mW |
| Other Names | 1727-3930-2 568-4282-2 568-4282-2-ND 934057892115 PUMD16 T/R |
| Current - Collector Cutoff (Max) | 1µA |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 300mW Surface Mount 6-TSSOP |
| Supplier Device Package | 6-TSSOP |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Tape & Reel (TR) |
| Base Part Number | MD16 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 5V |
| Resistor - Emitter Base (R2) | 47 kOhms |
| Mounting Type | Surface Mount |
| Resistor - Base (R1) | 22 kOhms |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
Таблицы данных: Work in prgress, stay tuned!
