Категория
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Производитель
Nexperia
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

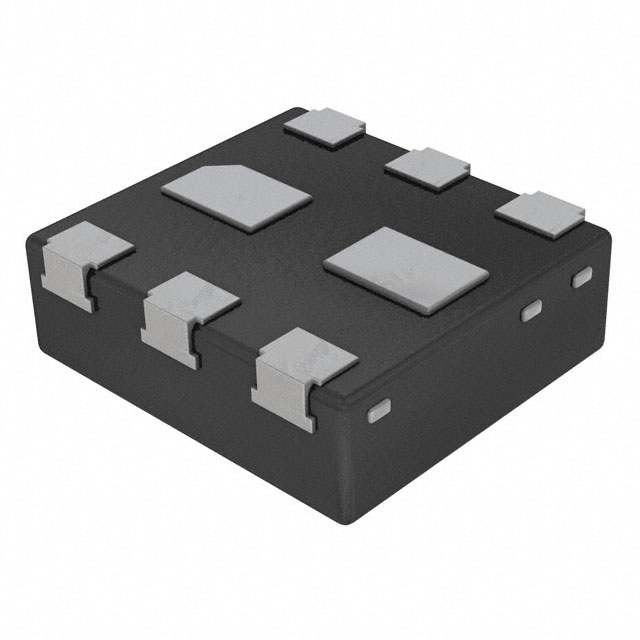

| Part Number: | PQMD3Z |
| Description: | TRANS NPN/PNP RET 6DFN |
| Lead Free Status / RoHS Status: | |
| Meta Part Number | 1727-2713-2-ND |
| Current - Collector Cutoff (Max) | 1µA |
| Series | Automotive, AEC-Q101 |
| Resistor - Emitter Base (R2) | 10 kOhms |
| Frequency - Transition | 230MHz, 180MHz |
| Packaging | Tape & Reel (TR) |
| Resistor - Base (R1) | 10 kOhms |
| Mounting Type | Surface Mount |
| Current - Collector (Ic) (Max) | 100mA |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 230MHz, 180MHz 230mW Surface Mount DFN1010B-6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Power - Max | 230mW |
| Supplier Device Package | DFN1010B-6 |
| Manufacturer Standard Lead Time | 8 Weeks |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Package / Case | 6-XFDFN Exposed Pad |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Other Names | 1727-2713-2 568-13234-2 568-13234-2-ND 934069744147 PQMD3Z-ND |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
Таблицы данных: Work in prgress, stay tuned!
