Категория
Transistors - FETs, MOSFETs - Arrays
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

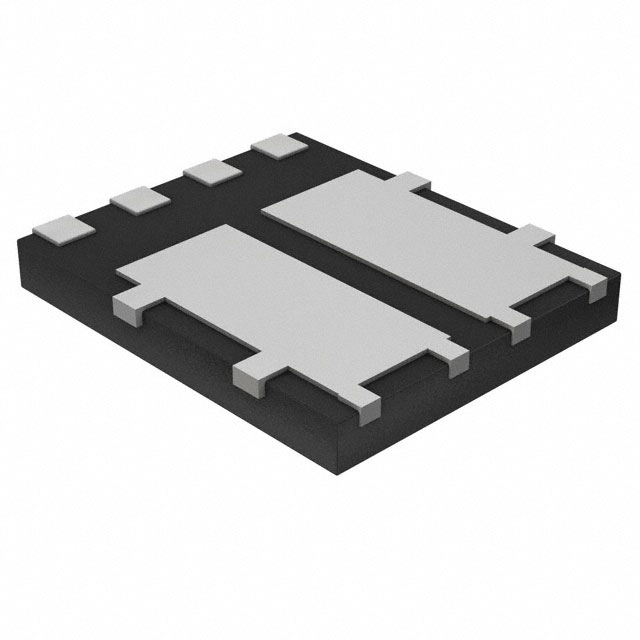

| Part Number: | NVMFD5C470NLWFT1G |
| Description: | MOSFET 2N-CH 40V 36A S08FL |
| Lead Free Status / RoHS Status: | |
| Package / Case | 8-PowerTDFN |
| Other Names | NVMFD5C470NLWFT1G-ND NVMFD5C470NLWFT1GOSTR |
| Drain to Source Voltage (Vdss) | 40V |
| Input Capacitance (Ciss) (Max) @ Vds | 590pF @ 25V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 40V 11A (Ta), 36A (Tc) 3W (Ta), 24W (Tc) Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
| Vgs(th) (Max) @ Id | 2.2V @ 20µA |
| Manufacturer Standard Lead Time | 50 Weeks |
| FET Type | 2 N-Channel (Dual) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Gate Charge (Qg) (Max) @ Vgs | 4nC @ 4.5V |
| Power - Max | 3W (Ta), 24W (Tc) |
| Meta Part Number | NVMFD5C470NLWFT1GOSTR-ND |
| FET Feature | Standard |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Packaging | Tape & Reel (TR) |
| Series | Automotive, AEC-Q101 |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta), 36A (Tc) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Rds On (Max) @ Id, Vgs | 11.5 mOhm @ 5A, 10V |
Таблицы данных: Work in prgress, stay tuned!
