Категория
Transistors - IGBTs - Single
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

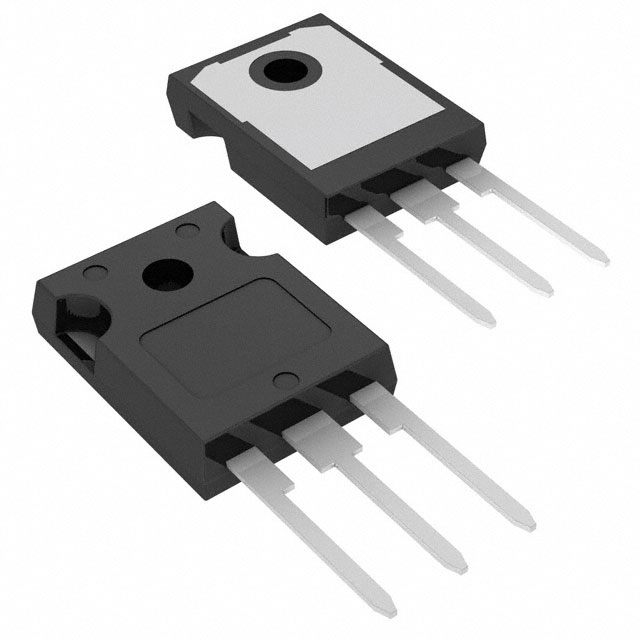

| Part Number: | NGTB25N120FL3WG |
| Description: | IGBT 1200V 100A TO247 |
| Lead Free Status / RoHS Status: | |
| Other Names | NGTB25N120FL3WGOS |
| Switching Energy | 1mJ (on), 700µJ (off) |
| Packaging | Tube |
| Manufacturer Standard Lead Time | 42 Weeks |
| Power - Max | 349W |
| Test Condition | 600V, 25A, 10 Ohm, 15V |
| Detailed Description | IGBT Trench Field Stop 1200V 100A 349W Through Hole TO-247-3 |
| Current - Collector (Ic) (Max) | 100A |
| Supplier Device Package | TO-247-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 25A |
| Meta Part Number | NGTB25N120FL3WGOS-ND |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 15ns/109ns |
| Mounting Type | Through Hole |
| Input Type | Standard |
| Package / Case | TO-247-3 |
| Current - Collector Pulsed (Icm) | 100A |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Reverse Recovery Time (trr) | 114ns |
| Gate Charge | 136nC |
Таблицы данных: Work in prgress, stay tuned!
