Категория
Transistors - IGBTs - Single
Производитель
IXYS / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

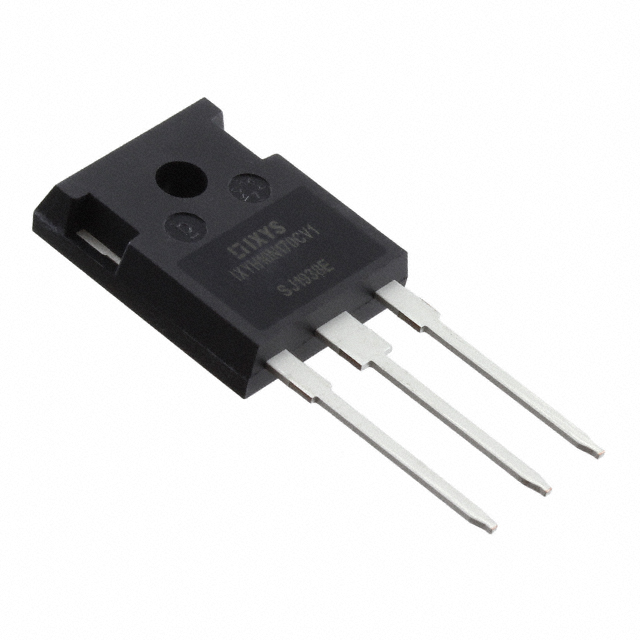

| Part Number: | IXYH16N170CV1 |
| Description: | IGBT 1.7KV 40A TO247 |
| Lead Free Status / RoHS Status: | |
| Switching Energy | 2.1mJ (on), 1.5mJ (off) |
| IGBT Type | - |
| Series | XPT™ |
| Td (on/off) @ 25°C | 11ns/140ns |
| Supplier Device Package | TO-247 (IXYH) |
| Current - Collector (Ic) (Max) | 40A |
| Packaging | Tube |
| Current - Collector Pulsed (Icm) | 100A |
| Manufacturer Standard Lead Time | 24 Weeks |
| Detailed Description | IGBT 1700V 40A 310W Through Hole TO-247 (IXYH) |
| Vce(on) (Max) @ Vge, Ic | 3.8V @ 15V, 16A |
| Gate Charge | 56nC |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Meta Part Number | IXYH16N170CV1-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Test Condition | 850V, 16A, 10 Ohm, 15V |
| Package / Case | TO-247-3 |
| Reverse Recovery Time (trr) | 150ns |
| Voltage - Collector Emitter Breakdown (Max) | 1700V |
| Power - Max | 310W |
Таблицы данных: Work in prgress, stay tuned!
