Категория
Transistors - IGBTs - Single
Производитель
IXYS / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

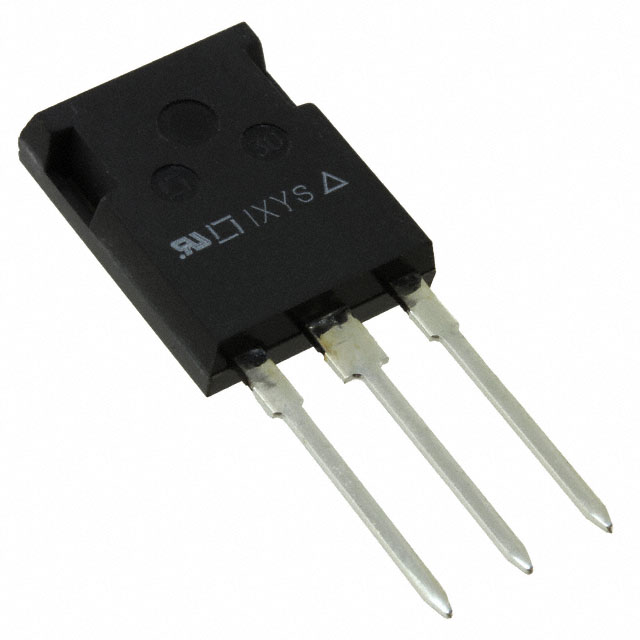

| Part Number: | IXGR24N60C |
| Description: | IGBT 600V 42A 80W ISOPLUS247 |
| Lead Free Status / RoHS Status: | |
| IGBT Type | - |
| Package / Case | ISOPLUS247™ |
| Input Type | Standard |
| Td (on/off) @ 25°C | 15ns/75ns |
| Supplier Device Package | ISOPLUS247™ |
| Current - Collector (Ic) (Max) | 42A |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Test Condition | 480V, 24A, 18 Ohm, 15V |
| Meta Part Number | IXGR24N60C-ND |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 24A |
| Series | HiPerFAST™ |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Packaging | Tube |
| Current - Collector Pulsed (Icm) | 80A |
| Gate Charge | 55nC |
| Base Part Number | IXG*24N60 |
| Detailed Description | IGBT 600V 42A 80W Through Hole ISOPLUS247™ |
| Power - Max | 80W |
| Switching Energy | 240µJ (off) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Таблицы данных: Work in prgress, stay tuned!
