Категория
Transistors - IGBTs - Single
Производитель
IXYS / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

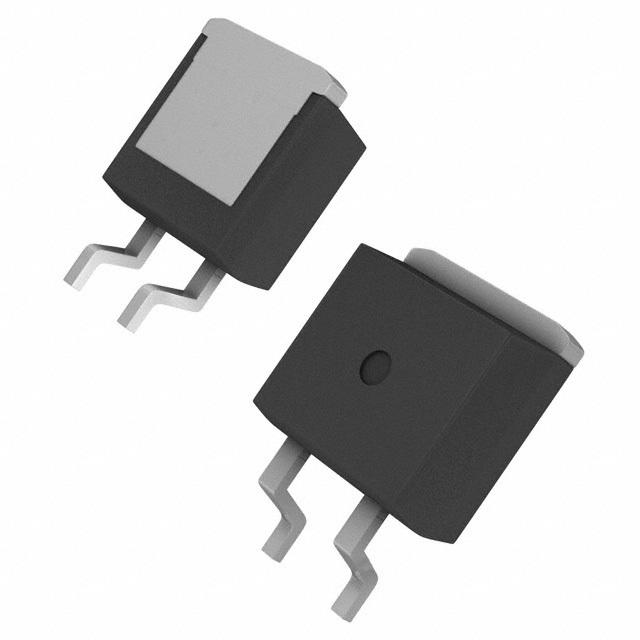

| Part Number: | IXGA50N60C4 |
| Description: | IGBT 600V 90A 300W TO263 |
| Lead Free Status / RoHS Status: | |
| Current - Collector (Ic) (Max) | 90A |
| Gate Charge | 113nC |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Series | - |
| IGBT Type | PT |
| Test Condition | 400V, 36A, 10 Ohm, 15V |
| Detailed Description | IGBT PT 600V 90A 300W Surface Mount TO-263 (IXGA) |
| Packaging | Tube |
| Current - Collector Pulsed (Icm) | 220A |
| Switching Energy | 950µJ (on), 840µJ (off) |
| Power - Max | 300W |
| Td (on/off) @ 25°C | 40ns/270ns |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Meta Part Number | IXGA50N60C4-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 36A |
| Supplier Device Package | TO-263 (IXGA) |
| Mounting Type | Surface Mount |
| Input Type | Standard |
Таблицы данных: Work in prgress, stay tuned!
