Категория
Transistors - IGBTs - Single
Производитель
Cypress Semiconductor (Infineon Technologies)
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

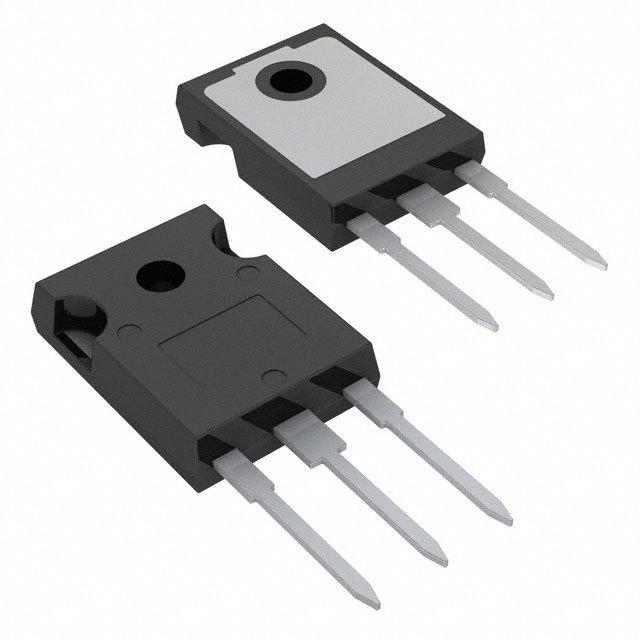

| Part Number: | IRG4PC40UPBF |
| Description: | IGBT 600V 40A 160W TO247AC |
| Lead Free Status / RoHS Status: | |
| Power - Max | 160W |
| Supplier Device Package | TO-247AC |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Gate Charge | 100nC |
| Package / Case | TO-247-3 |
| Current - Collector (Ic) (Max) | 40A |
| Current - Collector Pulsed (Icm) | 160A |
| Td (on/off) @ 25°C | 34ns/110ns |
| Mounting Type | Through Hole |
| Input Type | Standard |
| Series | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 20A |
| Packaging | Bulk |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Other Names | *IRG4PC40UPBF 63-6003PBF 63-6003PBF-ND SP001549526 |
| IGBT Type | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Detailed Description | IGBT 600V 40A 160W Through Hole TO-247AC |
| Test Condition | 480V, 20A, 10 Ohm, 15V |
| Meta Part Number | IRG4PC40UPBF-ND |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Switching Energy | 320µJ (on), 350µJ (off) |
Таблицы данных: Work in prgress, stay tuned!
