Категория
Transistors - IGBTs - Single
Производитель
Cypress Semiconductor (Infineon Technologies)
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

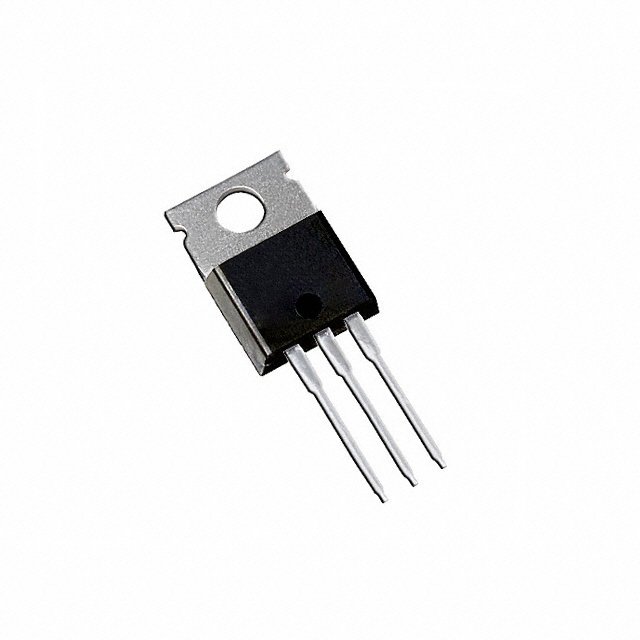

| Part Number: | IRG4BC30SPBF |
| Description: | IGBT 600V 34A 100W TO220AB |
| Lead Free Status / RoHS Status: | |
| Other Names | *IRG4BC30SPBF SP001535662 |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 34A |
| Detailed Description | IGBT 600V 34A 100W Through Hole TO-220AB |
| Td (on/off) @ 25°C | 22ns/540ns |
| Package / Case | TO-220-3 |
| Meta Part Number | IRG4BC30SPBF-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| IGBT Type | - |
| Series | - |
| Switching Energy | 260µJ (on), 3.45mJ (off) |
| Supplier Device Package | TO-220AB |
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 15V, 18A |
| Test Condition | 480V, 18A, 23 Ohm, 15V |
| Gate Charge | 50nC |
| Current - Collector Pulsed (Icm) | 68A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Tube |
| Input Type | Standard |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power - Max | 100W |
Таблицы данных: Work in prgress, stay tuned!
