Категория
Transistors - IGBTs - Single
Производитель
SemiQ
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

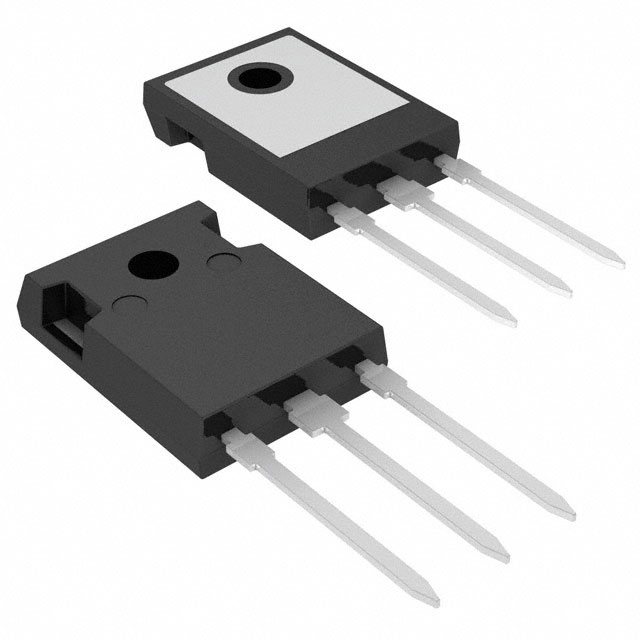

| Part Number: | GPA030A120I-FD |
| Description: | IGBT 1200V 60A 329W TO247 |
| Lead Free Status / RoHS Status: | |
| Reverse Recovery Time (trr) | 450ns |
| Gate Charge | 330nC |
| Other Names | 1560-1219-1 1560-1219-1-ND 1560-1219-5 |
| Packaging | Tube |
| Input Type | Standard |
| Detailed Description | IGBT Trench Field Stop 1200V 60A 329W Through Hole TO-247 |
| Current - Collector (Ic) (Max) | 60A |
| IGBT Type | Trench Field Stop |
| Meta Part Number | 1560-1219-5-ND |
| Package / Case | TO-247-3 |
| Series | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Td (on/off) @ 25°C | 40ns/245ns |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 30A |
| Current - Collector Pulsed (Icm) | 90A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Mounting Type | Through Hole |
| Switching Energy | 4.5mJ (on), 850µJ (off) |
| Power - Max | 329W |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Test Condition | 600V, 30A, 10 Ohm, 15V |
| Supplier Device Package | TO-247 |
Таблицы данных: Work in prgress, stay tuned!
