Категория
Transistors - FETs, MOSFETs - Arrays
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

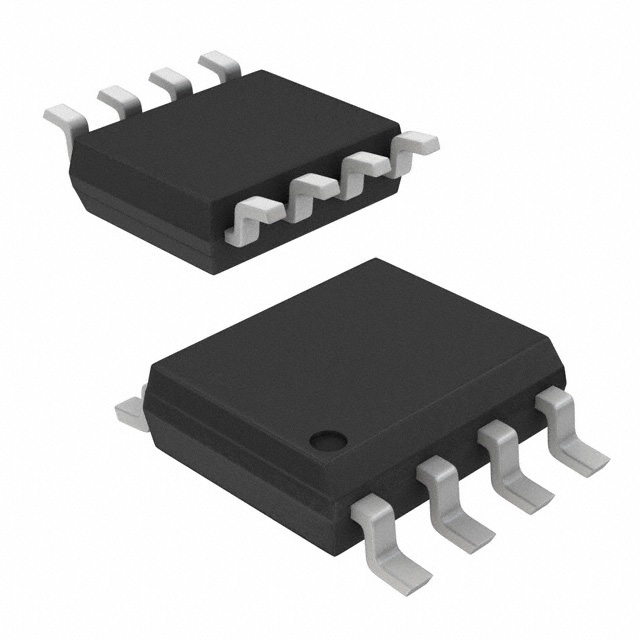

| Part Number: | FDS8962C |
| Description: | MOSFET N/P-CH 30V 7A/5A 8SOIC |
| Lead Free Status / RoHS Status: | |
| Mounting Type | Surface Mount |
| FET Type | N and P-Channel |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 10V |
| Other Names | FDS8962CCT |
| Power - Max | 900mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Capacitance (Ciss) (Max) @ Vds | 575pF @ 15V |
| Current - Continuous Drain (Id) @ 25°C | 7A, 5A |
| Meta Part Number | FDS8962CCT-ND |
| FET Feature | Logic Level Gate |
| Packaging | Cut Tape (CT) |
| Series | PowerTrench® |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Detailed Description | Mosfet Array N and P-Channel 30V 7A, 5A 900mW Surface Mount 8-SO |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Drain to Source Voltage (Vdss) | 30V |
| Rds On (Max) @ Id, Vgs | 30 mOhm @ 7A, 10V |
Таблицы данных: Work in prgress, stay tuned!
