Категория
Transistors - FETs, MOSFETs - Arrays
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

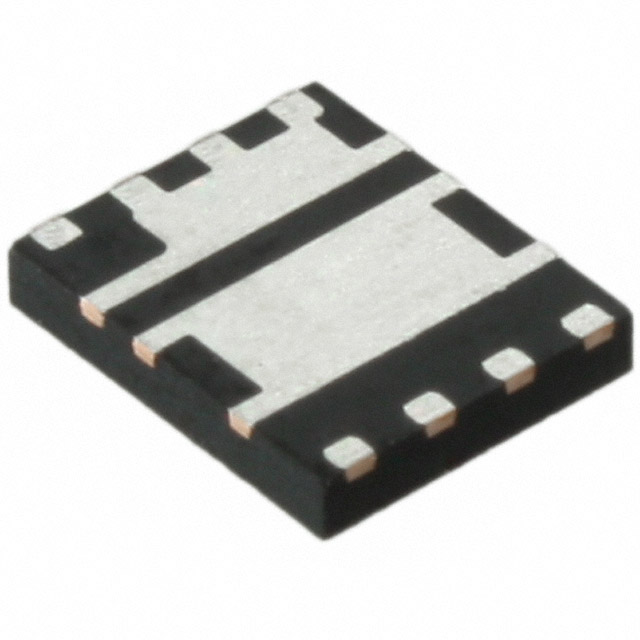

| Part Number: | FDMS3604S |
| Description: | MOSFET 2N-CH 30V 13A/23A 8-PQFN |
| Lead Free Status / RoHS Status: | |
| Drain to Source Voltage (Vdss) | 30V |
| Packaging | Cut Tape (CT) |
| Supplier Device Package | Power56 |
| Other Names | FDMS3604SCT |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA |
| Rds On (Max) @ Id, Vgs | 8 mOhm @ 13A, 10V |
| FET Feature | Logic Level Gate |
| Current - Continuous Drain (Id) @ 25°C | 13A, 23A |
| Gate Charge (Qg) (Max) @ Vgs | 29nC @ 10V |
| Package / Case | 8-PowerTDFN |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| Input Capacitance (Ciss) (Max) @ Vds | 1785pF @ 15V |
| Meta Part Number | FDMS3604SCT-ND |
| Series | PowerTrench® |
| Power - Max | 1W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) Asymmetrical 30V 13A, 23A 1W Surface Mount Power56 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
Таблицы данных: Work in prgress, stay tuned!
