Категория
Transistors - FETs, MOSFETs - Arrays
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

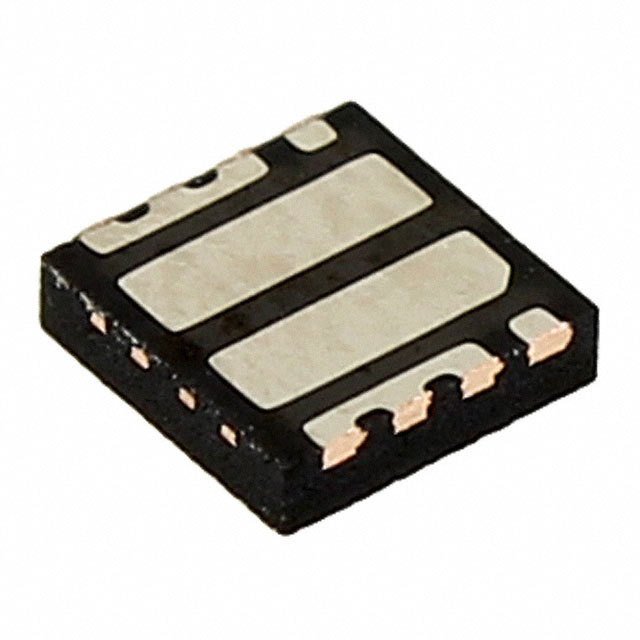

| Part Number: | FDMC8097AC |
| Description: | MOSFET N/P-CH 150V |
| Lead Free Status / RoHS Status: | |
| FET Feature | Standard |
| Input Capacitance (Ciss) (Max) @ Vds | 395pF @ 75V |
| Detailed Description | Mosfet Array N and P-Channel 150V 2.4A (Ta), 900mA (Tc) 1.9W Surface Mount 8-Power33 (3x3) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Type | N and P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta), 900mA (Tc) |
| Gate Charge (Qg) (Max) @ Vgs | 6.2nC @ 10V |
| Package / Case | 8-PowerWDFN |
| Packaging | Tape & Reel (TR) |
| Drain to Source Voltage (Vdss) | 150V |
| Meta Part Number | FDMC8097ACTR-ND |
| Mounting Type | Surface Mount |
| Power - Max | 1.9W |
| Other Names | FDMC8097ACTR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Supplier Device Package | 8-Power33 (3x3) |
| Rds On (Max) @ Id, Vgs | 155 mOhm @ 2.4A, 10V |
| Series | PowerTrench® |
| Manufacturer Standard Lead Time | 39 Weeks |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
Таблицы данных: Work in prgress, stay tuned!
