Категория
Transistors - Bipolar (BJT) - Single, Pre-Biased
Производитель
LAPIS Technology
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

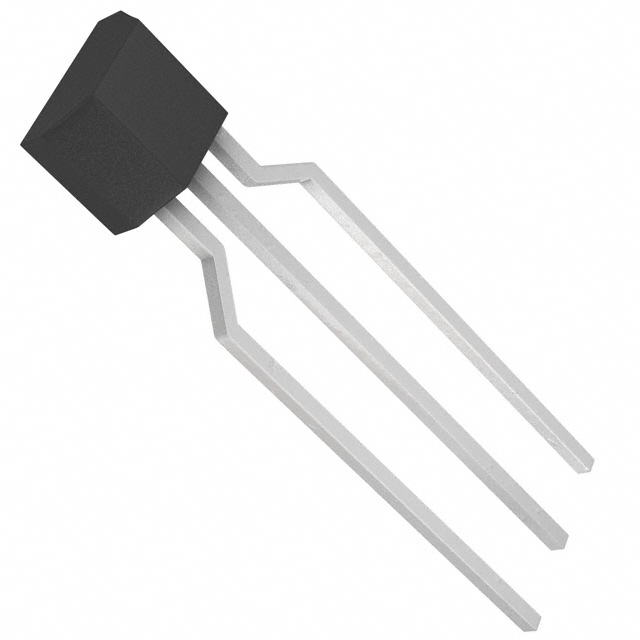

| Part Number: | DTC144ESATP |
| Description: | TRANS PREBIAS NPN 300MW SPT |
| Lead Free Status / RoHS Status: | |
| Mounting Type | Through Hole |
| Series | - |
| Transistor Type | NPN - Pre-Biased |
| Resistor - Emitter Base (R2) | 47 kOhms |
| Resistor - Base (R1) | 47 kOhms |
| Packaging | Cut Tape (CT) |
| Current - Collector (Ic) (Max) | 30mA |
| Base Part Number | DTC144 |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Meta Part Number | DTC144ESATPCT-ND |
| Current - Collector Cutoff (Max) | 500nA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 30mA 250MHz 300mW Through Hole SPT |
| Power - Max | 300mW |
| Package / Case | SC-72 Formed Leads |
| Frequency - Transition | 250MHz |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 68 @ 5mA, 5V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | SPT |
| Other Names | DTC144ESATPCT |
Таблицы данных: Work in prgress, stay tuned!
