| TYPE | DESCRIPTION |
| Part Number: | BCR22PNE6433HTMA1 |
| Description: | TRANS NPN/PNP PREBIAS SOT363 |
| Lead Free Status / RoHS Status: | |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 130MHz 250mW Surface Mount PG-SOT363-6 |

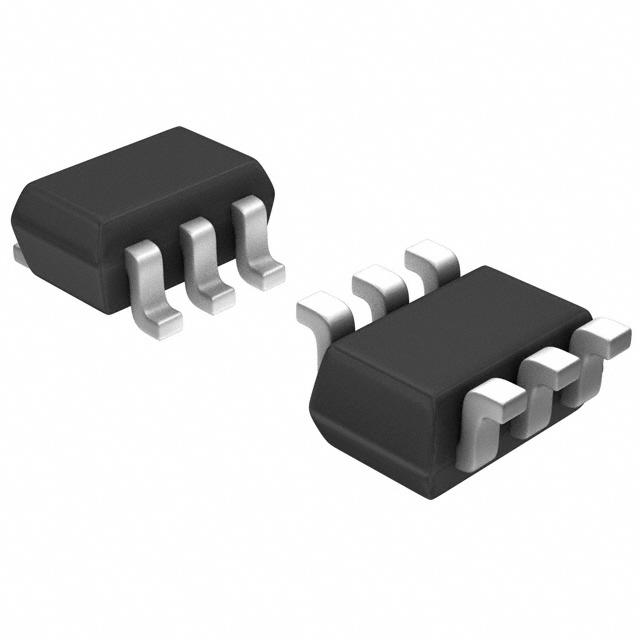

| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Base Part Number | BCR22PN |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5mA, 5V |
| Power - Max | 250mW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Transition | 130MHz |
| Resistor - Base (R1) | 22 kOhms |
| Series | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT363-6 |
| Meta Part Number | BCR22PNE6433HTMA1TR-ND |
| Current - Collector Cutoff (Max) | - |
| Other Names | BCR 22PN E6433 BCR 22PN E6433-ND BCR22PNE6433HTMA1TR BCR22PNE6433XT SP000010827 |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Resistor - Emitter Base (R2) | 22 kOhms |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Tape & Reel (TR) |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
