Категория
Gas Sensors
Производитель
Goertek
RoHS
YES
Certification
Доставка
Оплата

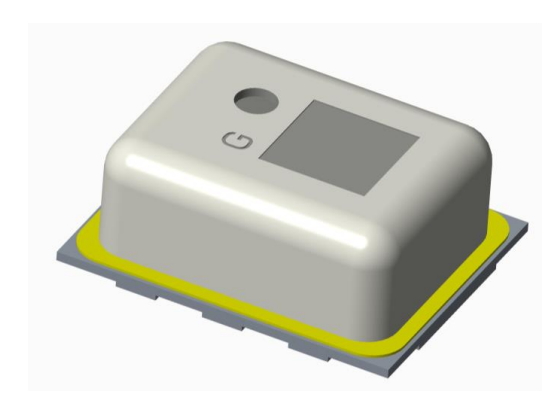

| Part Number | SPA06-003 |
| Category | Gas Sensors |
| Manufacturer | Goertek |
| Interface | I2C, SPI |
| Pressure range | 300-1100hPa(-500m~9000m relating to sea level) |
| Operating Temperature | -40°C ~ 85°C |
| Supply voltage | 1.7~3.6V (VDD), 1.08~3.6V (VDDIO) |
| Clock Rate | 16 MHz |
| Small footprint | 2.0mm x 2.5mm |
| Super-flat | Super-flat:0.95mm |
| Relative accuracy | typ.±0.03hPa, equiv. to ±0.25 m |
| Absolute accuracy | typ. ±0.3hPa (300~1100hPa) |
| Temperature accuracy | typ. ± 1°C |
| Pressure temperature sensitivity | typ. 0.5Pa/K |
| Measurement time | 3.6ms for low precision mode |
| Interface | I2C and SPI, Embedded 24-bit ADC |
| FIFO | Stores latest 32 pressure or temperature measurements |
Таблицы данных: Work in prgress, stay tuned!
