Категория
Thyristors - SCRs
Производитель
Hamlin / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | S2020L |
| Description: | SCR NON-SENS 200V 20A ISO TO-220 |
| Lead Free Status / RoHS Status: | |
| Current - Off State (Max) | 10µA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |

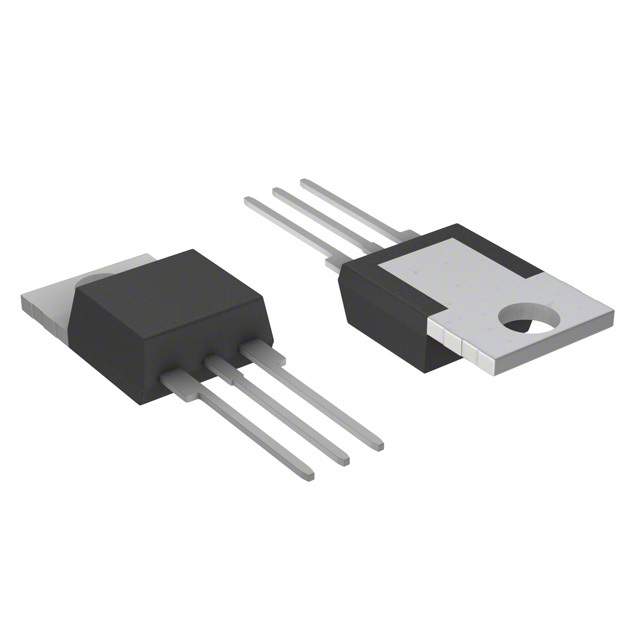

| Supplier Device Package | TO-220 Isolated Tab |
| Current - Gate Trigger (Igt) (Max) | 30mA |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
| Current - On State (It (AV)) (Max) | 12.8A |
| Series | - |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 255A, 300A |
| Mounting Type | Through Hole |
| Detailed Description | SCR 200V 20A Standard Recovery Through Hole TO-220 Isolated Tab |
| Package / Case | TO-220-3 Isolated Tab |
| Packaging | Bulk |
| Operating Temperature | -40°C ~ 125°C |
| SCR Type | Standard Recovery |
| Current - Hold (Ih) (Max) | 40mA |
| Voltage - Off State | 200V |
| Voltage - On State (Vtm) (Max) | 1.6V |
| Meta Part Number | S2020L-ND |
| Current - On State (It (RMS)) (Max) | 20A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Таблицы данных: Work in prgress, stay tuned!
