Категория
Diodes - Zener - Single
Производитель
Diodes Incorporated
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | BZX84C6V8-7 |
| Description: | DIODE ZENER 6.8V 300MW SOT23-3 |
| Lead Free Status / RoHS Status: | |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Other Names | BZX84C6V8DITR ","BZX84C6V8T ","BZX84C6V8TR ","BZX84C6V8TR-ND |
| Tolerance | ±6% |
| Voltage - Zener (Nom) (Vz) | 6.8V |
| Packaging | Tape & Reel (TR) |
| Series | - |

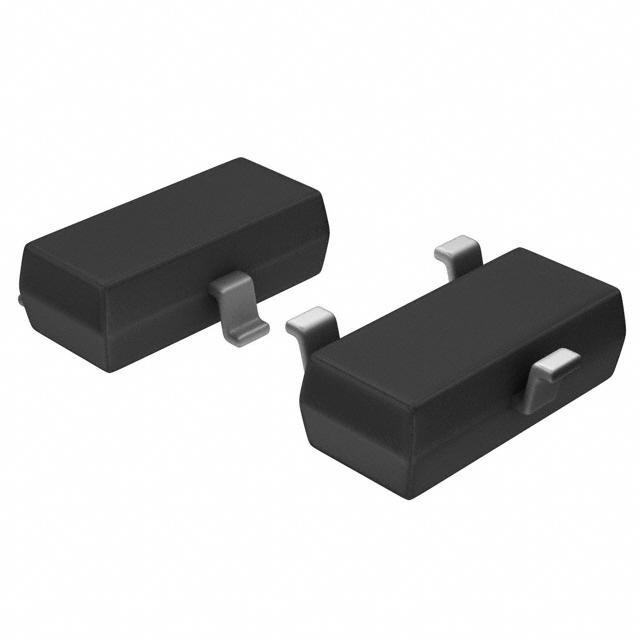

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Operating Temperature | -65°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 10mA |
| Detailed Description | Zener Diode 6.8V 300mW ±6% Surface Mount SOT-23-3 |
| Power - Max | 300mW |
| Current - Reverse Leakage @ Vr | 2µA @ 4V |
| Base Part Number | BZX84C6V8 |
| Meta Part Number | BZX84C6V8DITR-ND |
| Impedance (Max) (Zzt) | 15 Ohms |
Таблицы данных: Work in prgress, stay tuned!
