Категория
Transistors - FETs, MOSFETs - Single
Производитель
Nexperia
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | BUK9514-55A,127 |
| Description: | MOSFET N-CH 55V 73A TO220AB |
| Lead Free Status / RoHS Status: | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25°C | 73A (Tc) |
| Mounting Type | Through Hole |
| Drain to Source Voltage (Vdss) | 55V |
| Other Names | 568-9734-5 ","934055648127 ","BUK9514-55A ","BUK9514-55A,127-ND ","BUK9514-55A-ND ","BUK951455A127 |
| Meta Part Number | 568-9734-5-ND |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Input Capacitance (Ciss) (Max) @ Vds | 3307pF @ 25V |
| Rds On (Max) @ Id, Vgs | 13 mOhm @ 25A, 10V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Series | TrenchMOS™ |
| Vgs (Max) | ±10V |

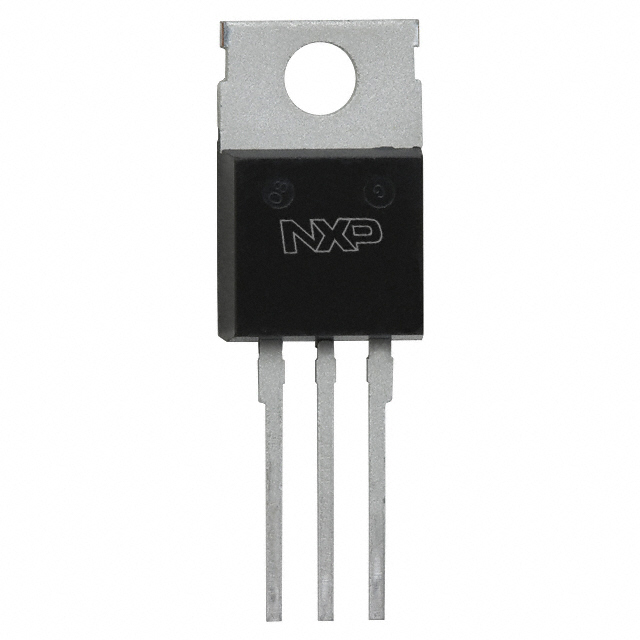

| Package / Case | TO-220-3 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| FET Type | N-Channel |
| Detailed Description | N-Channel 55V 73A (Tc) 149W (Tc) Through Hole TO-220AB |
| Power Dissipation (Max) | 149W (Tc) |
| Supplier Device Package | TO-220AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Tube |
Таблицы данных: Work in prgress, stay tuned!
