Категория
Transistors - IGBTs - Modules
Производитель
Microsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

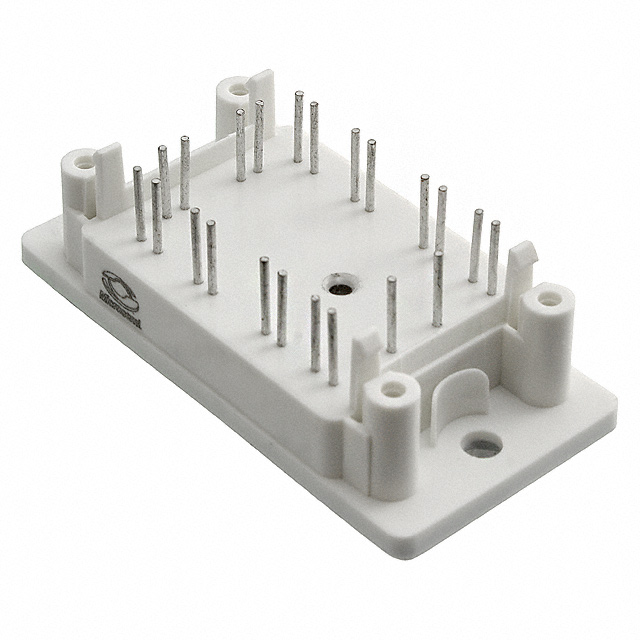

| Part Number: | APTGT75H60T2G |
| Description: | POWER MOD IGBT3 FULL BRIDGE SP2 |
| Lead Free Status / RoHS Status: | |
| Detailed Description | IGBT Module Trench Field Stop Full Bridge Inverter 600V 100A 250W Chassis Mount SP2 |
| Manufacturer Standard Lead Time | 32 Weeks |
| Configuration | Full Bridge Inverter |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 75A |
| Package / Case | SP2 |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 4.62nF @ 25V |
| NTC Thermistor | Yes |
| IGBT Type | Trench Field Stop |
| Series | - |
| Supplier Device Package | SP2 |
| Current - Collector (Ic) (Max) | 100A |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Power - Max | 250W |
| Current - Collector Cutoff (Max) | 250µA |
| Meta Part Number | APTGT75H60T2G-ND |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Таблицы данных: Work in prgress, stay tuned!
