Категория
Diodes - Rectifiers - Arrays
Производитель
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

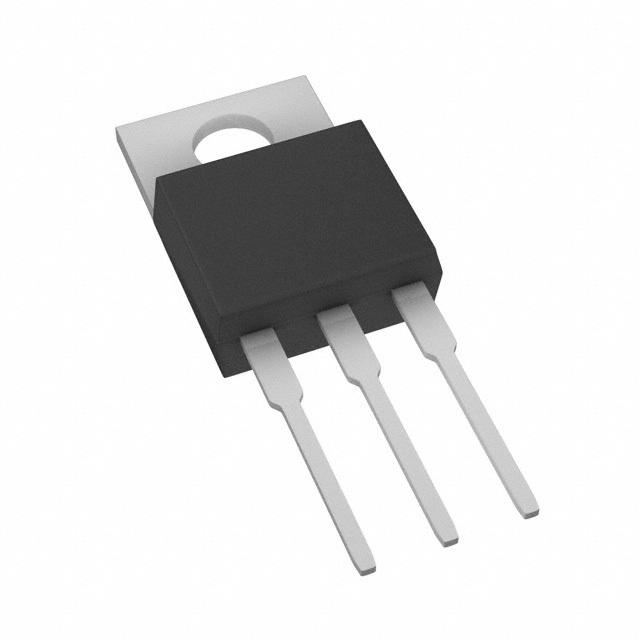

| Part Number: | UG10BCTHE3/45 |
| Description: | DIODE ARRAY GP 100V 5A TO220AB |
| Lead Free Status / RoHS Status: | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | UG10BCTHE3/45-ND |
| Voltage - DC Reverse (Vr) (Max) | 100V |
| Series | - |
| Current - Reverse Leakage @ Vr | 10µA @ 100V |
| Reverse Recovery Time (trr) | 25ns |
| Diode Type | Standard |
| Speed | Fast Recovery = 200mA (Io) |
| Current - Average Rectified (Io) (per Diode) | 5A |
| Detailed Description | Diode Array 1 Pair Common Cathode Standard 100V 5A Through Hole TO-220-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Packaging | Tube |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 5A |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Supplier Device Package | TO-220AB |
