Категория
Transistors - FETs, MOSFETs - Single
Производитель
STMicroelectronics
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

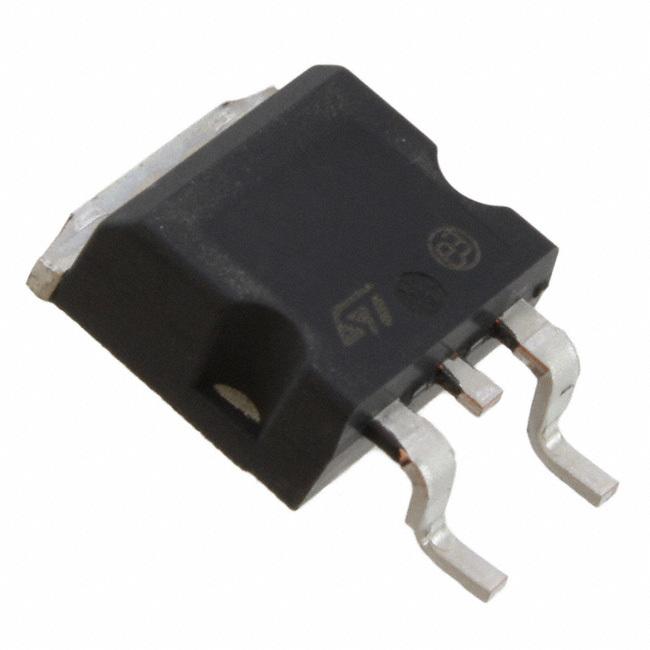

| Part Number: | STH265N6F6-2AG |
| Description: | MOSFET N-CH 60V 180A H2PAK-2 |
| Lead Free Status / RoHS Status: | |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | H2Pak-2 |
| FET Type | N-Channel |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Power Dissipation (Max) | 300W (Tc) |
| Vgs (Max) | ±20V |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Rds On (Max) @ Id, Vgs | 2.1 mOhm @ 60A, 10V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Other Names | 497-15471-2 |
| Drain to Source Voltage (Vdss) | 60V |
| Packaging | Tape & Reel (TR) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Meta Part Number | 497-15471-2-ND |
| Input Capacitance (Ciss) (Max) @ Vds | 11800pF @ 25V |
| Manufacturer Standard Lead Time | 38 Weeks |
| Gate Charge (Qg) (Max) @ Vgs | 183nC @ 10V |
| Series | Automotive, AEC-Q101, STripFET™ F6 |
| Detailed Description | N-Channel 60V 180A (Tc) 300W (Tc) Surface Mount H2Pak-2 |
Таблицы данных: Work in prgress, stay tuned!
