Категория
Transistors - Bipolar (BJT) - Arrays
Производитель
Nexperia
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

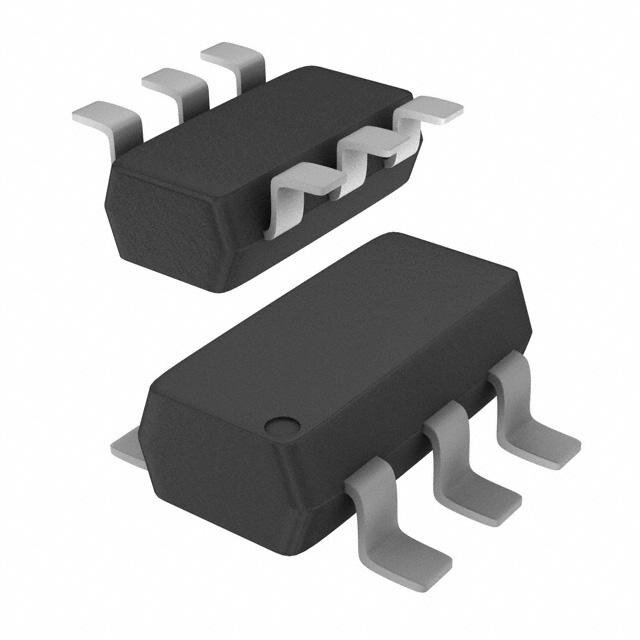

| Part Number: | PBSS4160DPN,115 |
| Description: | TRANS NPN/PNP 60V 6TSOP |
| Lead Free Status / RoHS Status: | |
| Base Part Number | PBSS4160DPN |
| Series | - |
| Power - Max | 420mW |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 100mA, 1A / 330mV @ 100mA, 1A |
| Meta Part Number | 1727-3948-2-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Collector Cutoff (Max) | 100nA |
| Packaging | Tape & Reel (TR) |
| Current - Collector (Ic) (Max) | 870mA, 770mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 5V / 150 @ 500mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 60V |
| Operating Temperature | 150°C (TJ) |
| Transistor Type | NPN, PNP |
| Frequency - Transition | 220MHz, 185MHz |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | 6-TSOP |
| Mounting Type | Surface Mount |
| Other Names | 1727-3948-2 568-4352-2 568-4352-2-ND 934058119115 PBSS4160DPN T/R PBSS4160DPN T/R-ND |
| Detailed Description | Bipolar (BJT) Transistor Array NPN, PNP 60V 870mA, 770mA 220MHz, 185MHz 420mW Surface Mount 6-TSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Таблицы данных: Work in prgress, stay tuned!
