Категория
Transistors - Bipolar (BJT) - Arrays
Производитель
Diodes Incorporated
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | MMDT3946FL3-7 |
| Description: | TRANS NPN/PNP 40V 200MA 6DFN |
| Lead Free Status / RoHS Status: | |
| Other Names | MMDT3946FL3-7DICT |
| Current - Collector Cutoff (Max) | 50nA |
| Current - Collector (Ic) (Max) | 200mA |
| Meta Part Number | MMDT3946FL3-7DICT-ND |

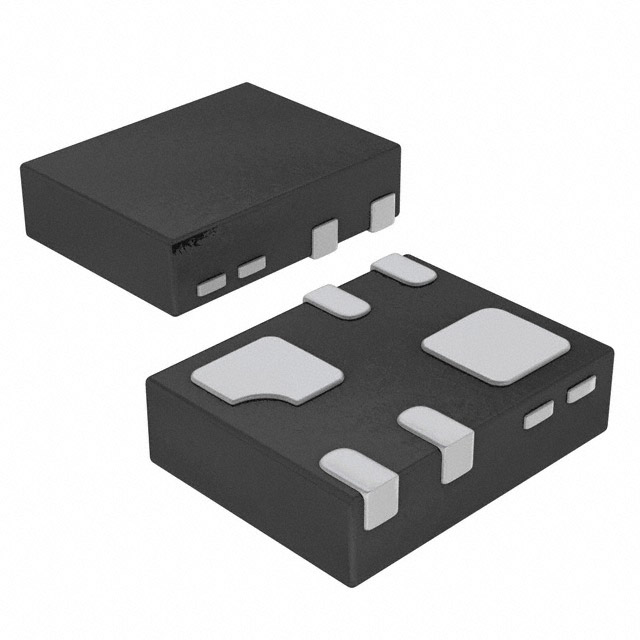

| Package / Case | 6-XFDFN |
| Frequency - Transition | 300MHz |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Power - Max | 370mW |
| Supplier Device Package | X2-DFN1310-6 |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 50mA |
| Transistor Type | NPN, PNP Complementary |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Detailed Description | Bipolar (BJT) Transistor Array NPN, PNP Complementary 40V 200mA 300MHz 370mW Surface Mount X2-DFN1310-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Cut Tape (CT) |
| Manufacturer Standard Lead Time | 16 Weeks |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Таблицы данных: Work in prgress, stay tuned!
