Категория
Thyristors - SCRs - Modules
Производитель
Crydom / Sensata Technologies
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

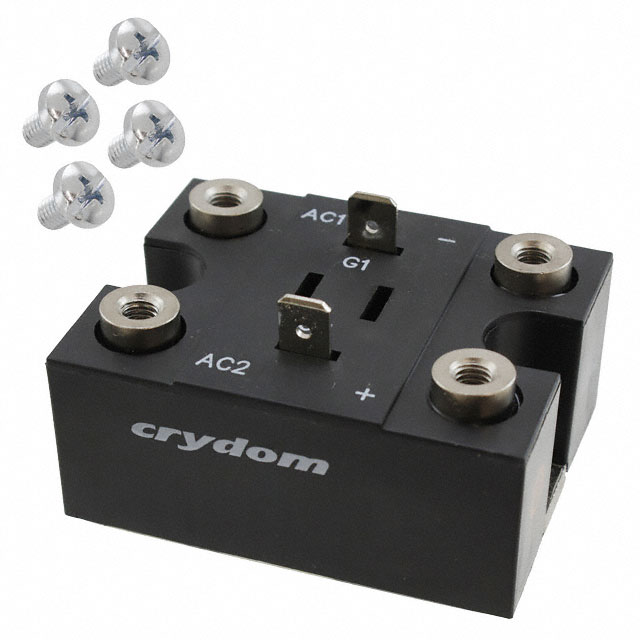

| Part Number: | M505015F |
| Description: | MODULE SCR 50A 480VAC |
| Lead Free Status / RoHS Status: | |
| Manufacturer Standard Lead Time | 6 Weeks |
| Mounting Type | Chassis Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Gate Trigger (Igt) (Max) | 150mA |
| Package / Case | Module |
| Meta Part Number | CC2245-ND |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Other Names | CC2245 M505015F-ND Q1332436 |
| Detailed Description | SCR Module 1.2kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Packaging | Bulk |
| Voltage - Off State | 1.2kV |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 600A @ 60Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 3V |
| Series | - |
Таблицы данных: Work in prgress, stay tuned!
