Категория
Transistors - FETs, MOSFETs - Single
Производитель
IXYS / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

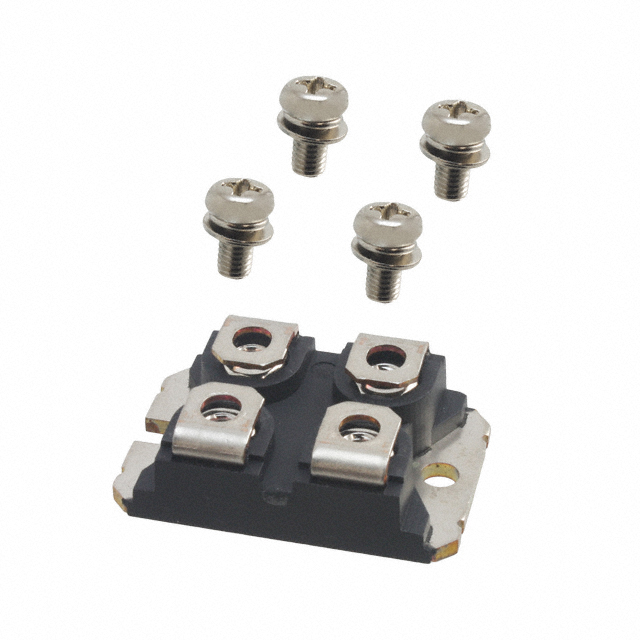

| Part Number: | IXFN73N30 |
| Description: | MOSFET N-CH 300V 73A SOT-227B |
| Lead Free Status / RoHS Status: | |
| Gate Charge (Qg) (Max) @ Vgs | 360nC @ 10V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 45 mOhm @ 500mA, 10V |
| Packaging | Tube |
| Current - Continuous Drain (Id) @ 25°C | 73A (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 8mA |
| Vgs (Max) | ±20V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | N-Channel 300V 73A (Tc) 500W (Tc) Chassis Mount SOT-227B |
| Drain to Source Voltage (Vdss) | 300V |
| Meta Part Number | IXFN73N30-ND |
| Power Dissipation (Max) | 500W (Tc) |
| Mounting Type | Chassis Mount |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Series | HiPerFET™ |
| Input Capacitance (Ciss) (Max) @ Vds | 9000pF @ 25V |
| FET Type | N-Channel |
Таблицы данных: Work in prgress, stay tuned!
