Категория
Transistors - FETs, MOSFETs - Single
Производитель
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

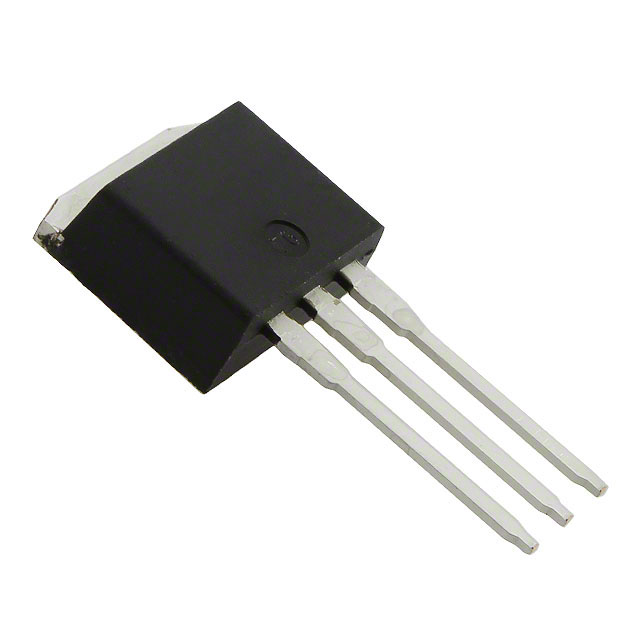

| Part Number: | IRF840AL |
| Description: | MOSFET N-CH 500V 8A TO-262 |
| Lead Free Status / RoHS Status: | |
| Meta Part Number | IRF840AL-ND |
| Technology | MOSFET (Metal Oxide) |
| Packaging | Tube |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Other Names | *IRF840AL |
| Power Dissipation (Max) | 3.1W (Ta), 125W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Rds On (Max) @ Id, Vgs | 850 mOhm @ 4.8A, 10V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Through Hole |
| Supplier Device Package | I2PAK |
| Input Capacitance (Ciss) (Max) @ Vds | 1018pF @ 25V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vgs (Max) | ±30V |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| FET Type | N-Channel |
| Drain to Source Voltage (Vdss) | 500V |
| Detailed Description | N-Channel 500V 8A (Tc) 3.1W (Ta), 125W (Tc) Through Hole I2PAK |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Series | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| FET Feature | - |
| Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V |
