| TYPE | DESCRIPTION |

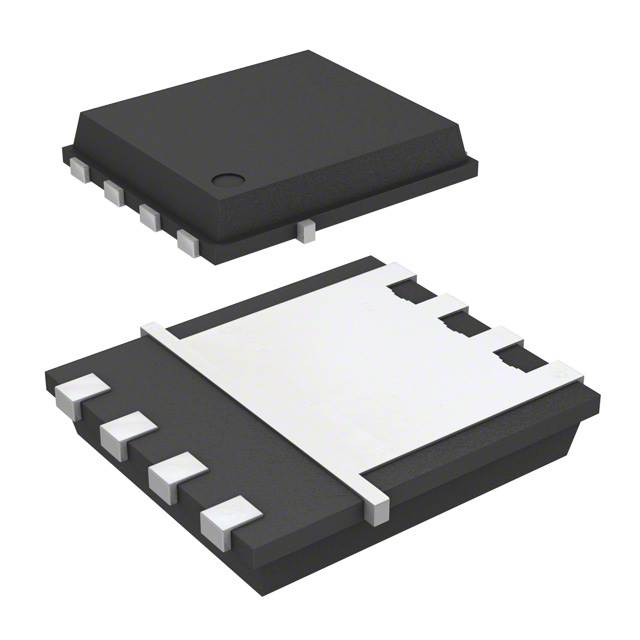

| Part Number: | BSC0904NSIATMA1 |
| Description: | MOSFET N-CH 30V 20A 8TDSON |
| Lead Free Status / RoHS Status: | |
| Other Names | BSC0904NSIATMA1CT BSC0904NSICT BSC0904NSICT-ND |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V |
| Supplier Device Package | PG-TDSON-8 |
| Technology | MOSFET (Metal Oxide) |
| Detailed Description | N-Channel 30V 20A (Ta), 78A (Tc) 2.5W (Ta), 37W (Tc) Surface Mount PG-TDSON-8 |
| Vgs (Max) | ±20V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Drain to Source Voltage (Vdss) | 30V |
| Packaging | Cut Tape (CT) |
| Meta Part Number | BSC0904NSIATMA1CT-ND |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Type | N-Channel |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 2.5W (Ta), 37W (Tc) |
| Mounting Type | Surface Mount |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta), 78A (Tc) |
| Series | OptiMOS™ |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Capacitance (Ciss) (Max) @ Vds | 1100pF @ 15V |
| Rds On (Max) @ Id, Vgs | 3.7 mOhm @ 30A, 10V |
| FET Feature | - |
