Категория
Transistors - IGBTs - Modules
Производитель
Microsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

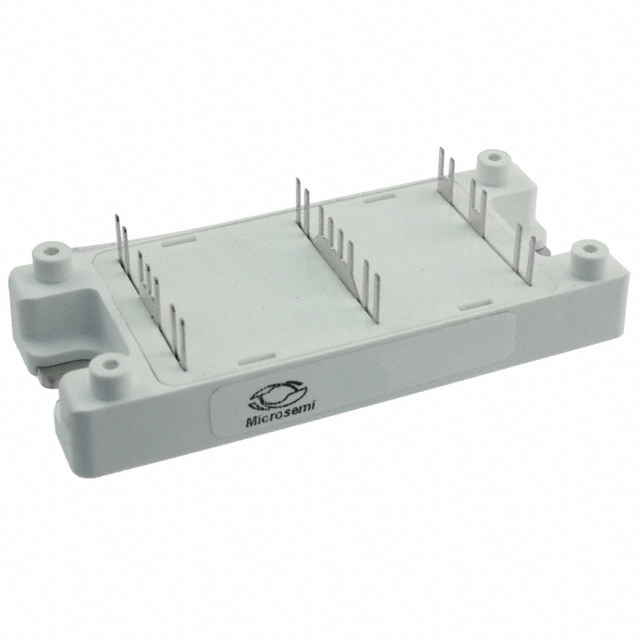

| Part Number: | APTGT75SK120TG |
| Description: | IGBT 1200V 110A 357W SP4 |
| Lead Free Status / RoHS Status: | |
| Current - Collector Cutoff (Max) | 250µA |
| Input | Standard |
| Package / Case | SP4 |
| NTC Thermistor | Yes |
| Series | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | SP4 |
| Power - Max | 357W |
| Mounting Type | Chassis Mount |
| Manufacturer Standard Lead Time | 32 Weeks |
| Meta Part Number | APTGT75SK120TG-ND |
| IGBT Type | Trench Field Stop |
| Configuration | Single |
| Current - Collector (Ic) (Max) | 110A |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Detailed Description | IGBT Module Trench Field Stop Single 1200V 110A 357W Chassis Mount SP4 |
| Input Capacitance (Cies) @ Vce | 5.34nF @ 25V |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
Таблицы данных: Work in prgress, stay tuned!
