Категория
Transistors - IGBTs - Modules
Производитель
Microsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

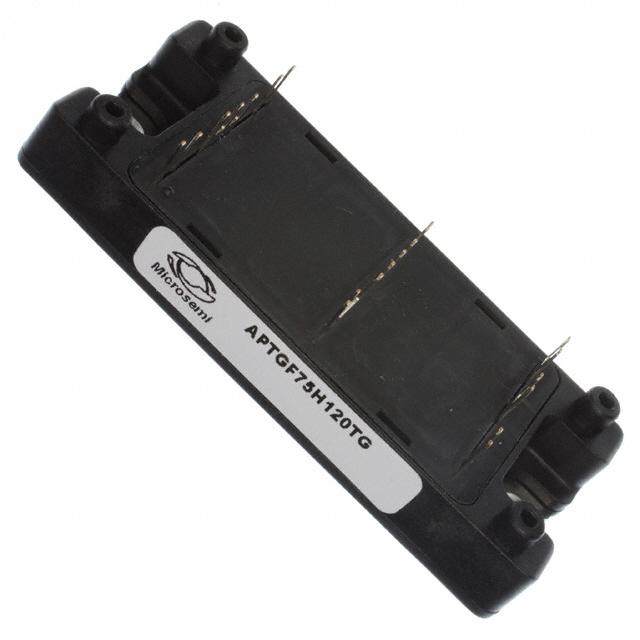

| Part Number: | APTGF75H120TG |
| Description: | POWER MODULE IGBT 1200V 75A SP4 |
| Lead Free Status / RoHS Status: | |
| NTC Thermistor | Yes |
| IGBT Type | NPT |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Current - Collector (Ic) (Max) | 100A |
| Supplier Device Package | SP4 |
| Input Capacitance (Cies) @ Vce | 5.1nF @ 25V |
| Power - Max | 500W |
| Package / Case | SP4 |
| Configuration | Full Bridge Inverter |
| Current - Collector Cutoff (Max) | 250µA |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Detailed Description | IGBT Module NPT Full Bridge Inverter 1200V 100A 500W Chassis Mount SP4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 75A |
| Input | Standard |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Other Names | APTGF75H120TGMI APTGF75H120TGMI-ND |
| Meta Part Number | APTGF75H120TG-ND |
| Series | - |
Таблицы данных: Work in prgress, stay tuned!
