Категория
Transistors - Bipolar (BJT) - Single
Производитель
LAPIS Technology
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

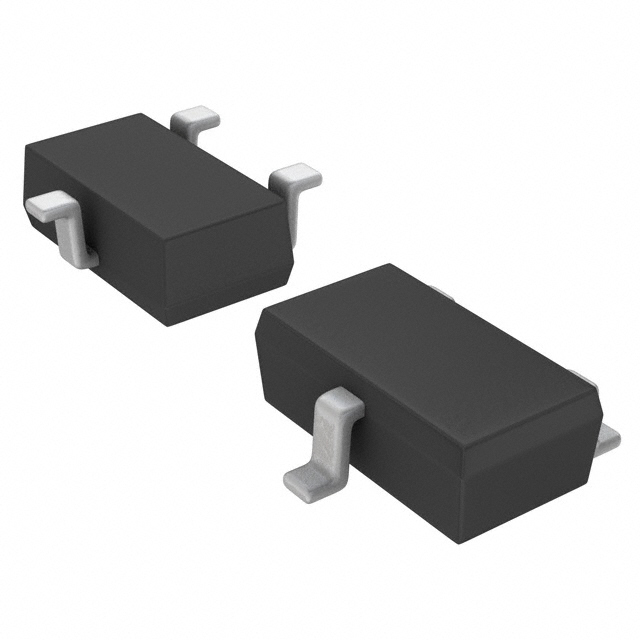

| Part Number: | 2SCR514RTL |
| Description: | TRANS NPN 80V 0.7A TSMT3 |
| Lead Free Status / RoHS Status: | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | - |
| Meta Part Number | 2SCR514RTLTR-ND |
| Frequency - Transition | 320MHz |
| Packaging | Tape & Reel (TR) |
| Current - Collector (Ic) (Max) | 700mA |
| Supplier Device Package | TSMT3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mounting Type | Surface Mount |
| Package / Case | SC-96 |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 15mA, 300mA |
| Voltage - Collector Emitter Breakdown (Max) | 80V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 100mA, 3V |
| Operating Temperature | 150°C (TJ) |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| Transistor Type | NPN |
| Power - Max | 1W |
| Other Names | 2SCR514RTLTR |
| Detailed Description | Bipolar (BJT) Transistor NPN 80V 700mA 320MHz 1W Surface Mount TSMT3 |
Таблицы данных: Work in prgress, stay tuned!
