| TYPE | DESCRIPTION |

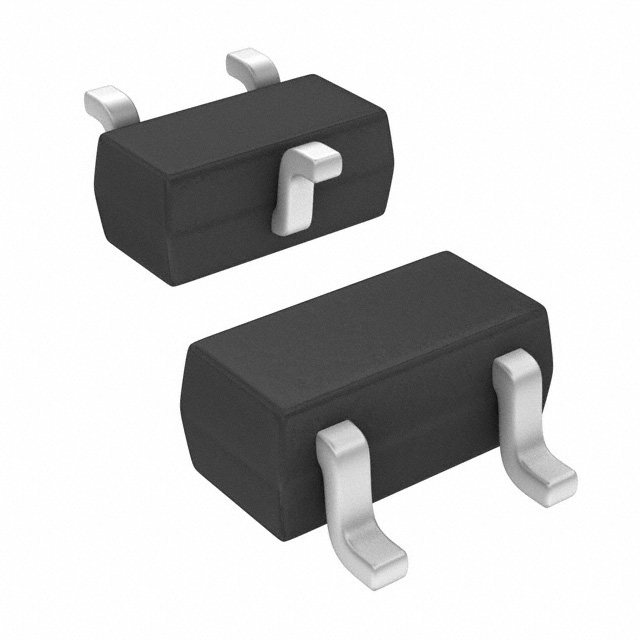

| Part Number: | 2SC5108-Y,LF |
| Description: | TRANS RF NPN 10V 1GHZ SSM |
| Lead Free Status / RoHS Status: | |
| Package / Case | SC-75, SOT-416 |
| Meta Part Number | 2SC5108-YLFCT-ND |
| Current - Collector (Ic) (Max) | 30mA |
| Series | - |
| Operating Temperature | 125°C (TJ) |
| Detailed Description | RF Transistor NPN 10V 30mA 6GHz 100mW Surface Mount SSM |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Collector Emitter Breakdown (Max) | 10V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 5mA, 5V |
| Frequency - Transition | 6GHz |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gain | 11dB |
| Mounting Type | Surface Mount |
| Power - Max | 100mW |
| Transistor Type | NPN |
| Supplier Device Package | SSM |
| Other Names | 2SC5108-Y(T5LFT)CT 2SC5108-Y(T5LFT)CT-ND 2SC5108-YLFCT |
| Packaging | Cut Tape (CT) |
| Noise Figure (dB Typ @ f) | - |
